DISPLIX Blackprint | Sarnikon
DISPLIX Blackprint
Üretici : OSRAM Opto Semiconductors
Kategori : RGB LED
Application : Video walls in outdoor areas,Full color displays

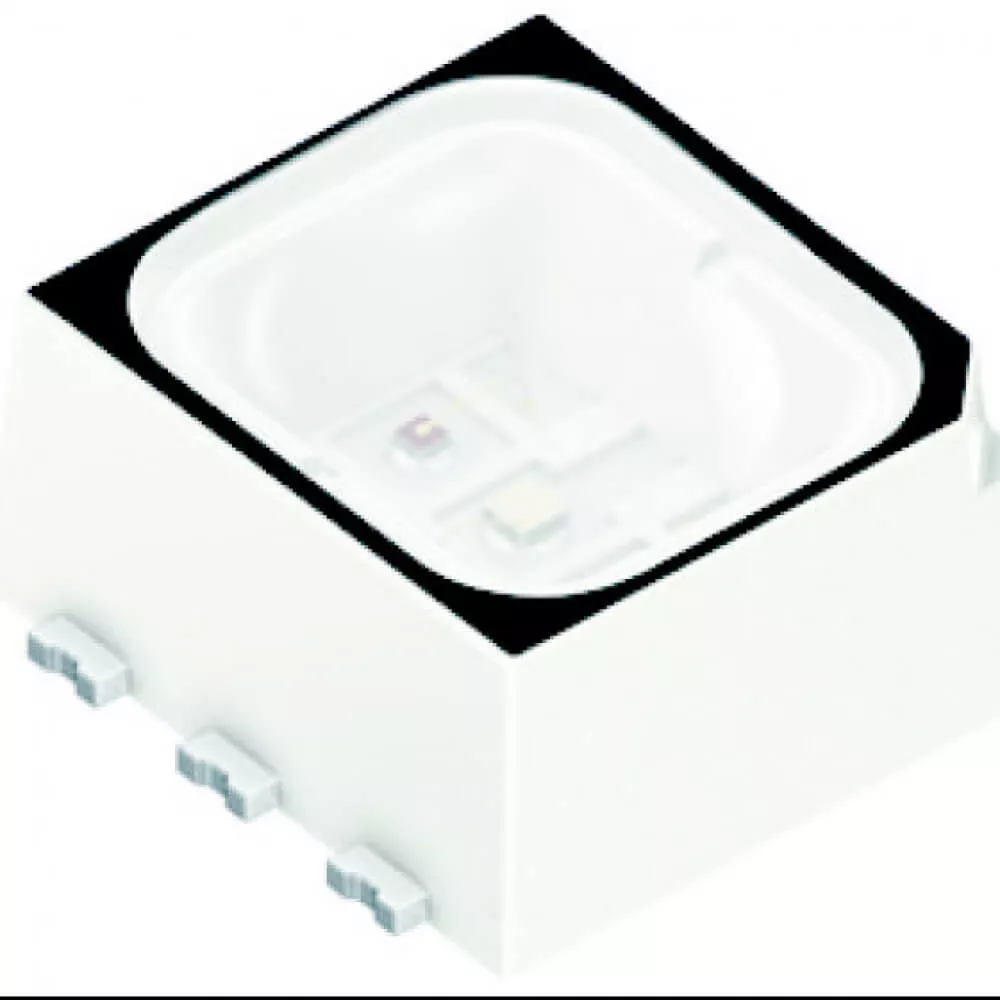

Package : white PLCC-6 package, diffused silicone resin
Viewing angle at 50 % IV: 120°
Color: red/true green/ blue, 625 nm (red),528 nm (true green), 470 nm (blue)
Package : white PLCC-6 package, diffused silicone resin
Viewing angle at 50 % IV: 120°
Color: red/true green/ blue, 625 nm (red),528 nm (true green), 470 nm (blue)
Ürün Özellikleri
Product Type | Wavelength λpeak | Forward Current | Forward Voltage | Luminous Intensity IF = 20 mA IV (mcd) |
LRTB GRTG | 632nm red 523nm true green 465 nm blue | 20mA Red -True Green – Blue | 2.05V red 3,2V true green 3,2Vblue | 669….1323red 1323…2800true green 297….529blue |
