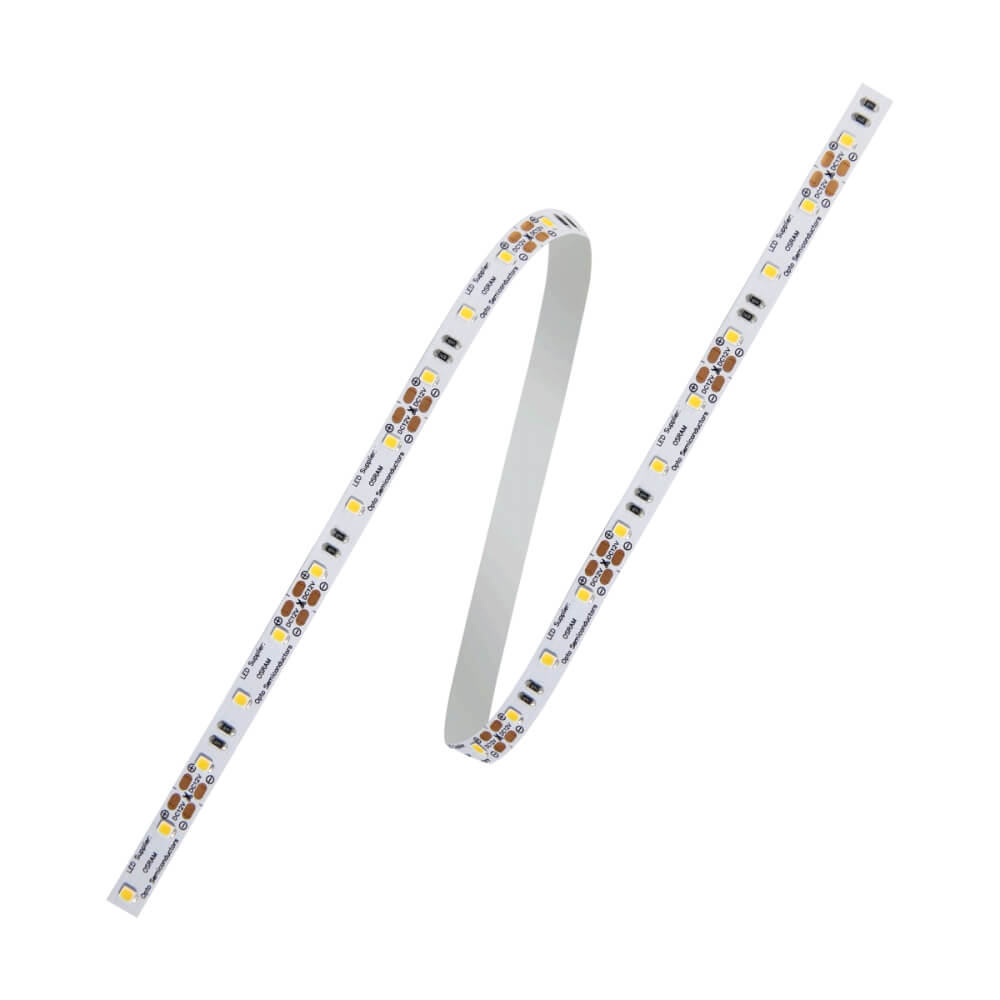

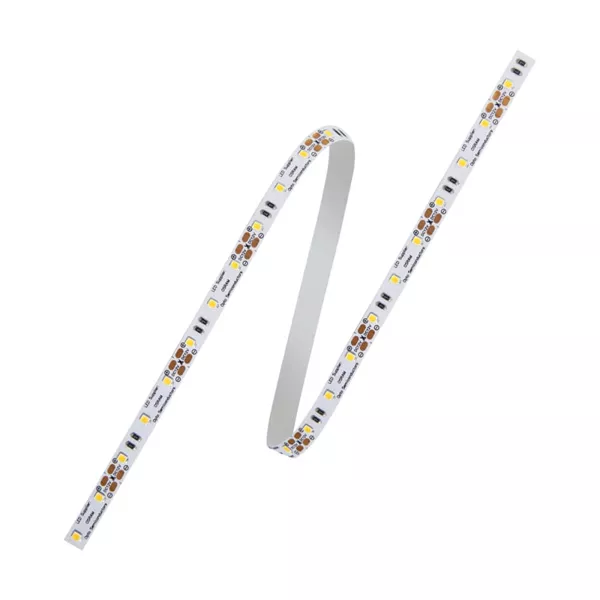

FLX-08X1000-D28X60-120-V24
Üretici : Sarnikon
Kategori : Şerit Led
Ürün Özellikleri
Ürün Özellikleri:
• LED type : OSRAM Duris E 28*35
• LED case: 2.8 mm x 3.5mm
• Viewing angle: 1200
• IEC62471 Biological Eye Safety Test Report
• Up to 75 mA
• Thermal resistance (typ.) : 25 K/W
• Constant colour binnig
• Constant voltage binning
• LM80 test report
• Suitable for linear illumination
• Low energy consumption, high efficacy and long life
• Integrated current source to stabilize
• Homogeneous illumination
• 3 years warranty
| Product Code | Color Temperature[1] | Total number of LEDs | Number of parallel strings | Number of LEDs per string | Luminous Flux | Luminous Flux | Max.Power consumption (W) | Colour rendering index (CRI) | ||
| @ ts = 25 °C (lm)[2] | @ ts = 45 °C (lm)2 | |||||||||
| Operating mode at 24V | ||||||||||
| FLX-08X1000-D28X60-V24-30 | 3000K | 60 | 10 | 6 | 966 | 1218 | 898 | 1133 | 9,6 | ≥80 |
| FLX-08X1000-D28X60-V24-40 | 4000K | 60 | 10 | 6 | 966 | 1218 | 898 | 1133 | 9,6 | ≥80 |
| FLX-08X1000-D28X60-V24-65 | 6500K | 60 | 10 | 6 | 966 | 1218 | 898 | 1133 | 9,6 | ≥80 |
| Operating mode at 24V | ||||||||||
| FLX-08X1000-D28X120-V24-30 | 3000K | 120 | 20 | 6 | 1932 | 2436 | 1797 | 2265 | 19,2 | ≥80 |
| FLX-08X1000-D28X120-V24-40 | 4000K | 120 | 20 | 6 | 1932 | 2436 | 1797 | 2265 | 19,2 | ≥80 |
| FLX-08X1000-D28X120-V24-65 | 6500K | 120 | 20 | 6 | 1932 | 2436 | 1797 | 2265 | 19,2 | ≥80 |
3000K: GW JTLMSX.EM-B8A2-30S5
4000K: GW JTLMSX.EM-B8A2-40S5
6500K: GW JTLMSX.EM-B8A2-65S5
Tolerace range for optical data ±10%
Tolerace range for electrical data ±4%
