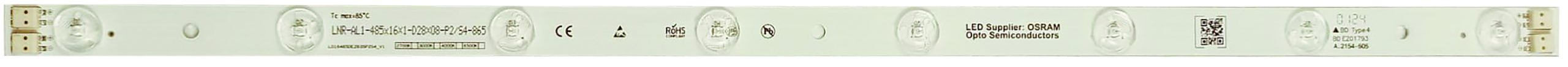

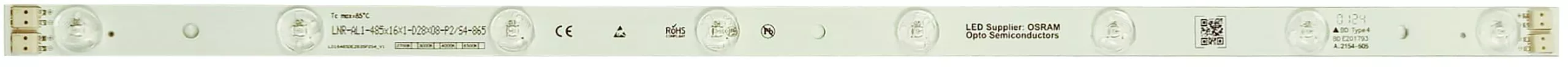

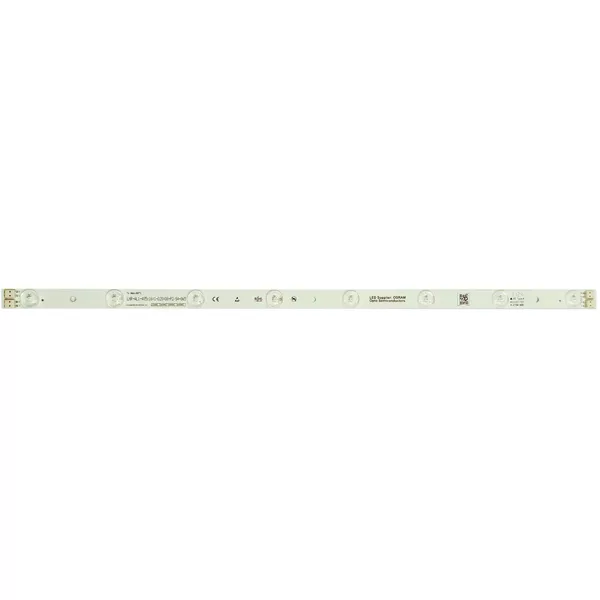

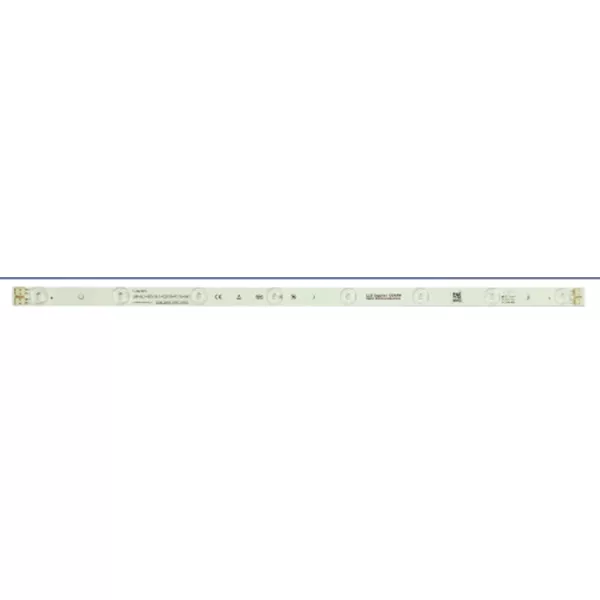

LNR-AL1-485X16X1-D28X08 Backlight LED Module High Efficiency

Datasheet indirmek için: LNR-AL1-485X16X1-D28X08-P2S4_LED MODULE

Üretici: SARNIKON

• CRI: 80 (min.), 82 (typ.)
• Color Temperature: 4000K -6500K
• Luminous efficacy: typ. 149 lm/W @ 200mA 25˚© 6500K
• Beam Angle without TVS Lens 120degree
• 3 years warranty
• Combinable high-quality modules for a smart, performant design. Ideal also for extensive applications. Perfect light uniformity
• Ideal for residential, office, retail and industrial lighting.
• The module size is 485X16X4 mm
• 180degree TVS Lens is available as additional option
• Ideal for residential, office, retail and industrial lighting.

Please contact with us to test a free sample!
