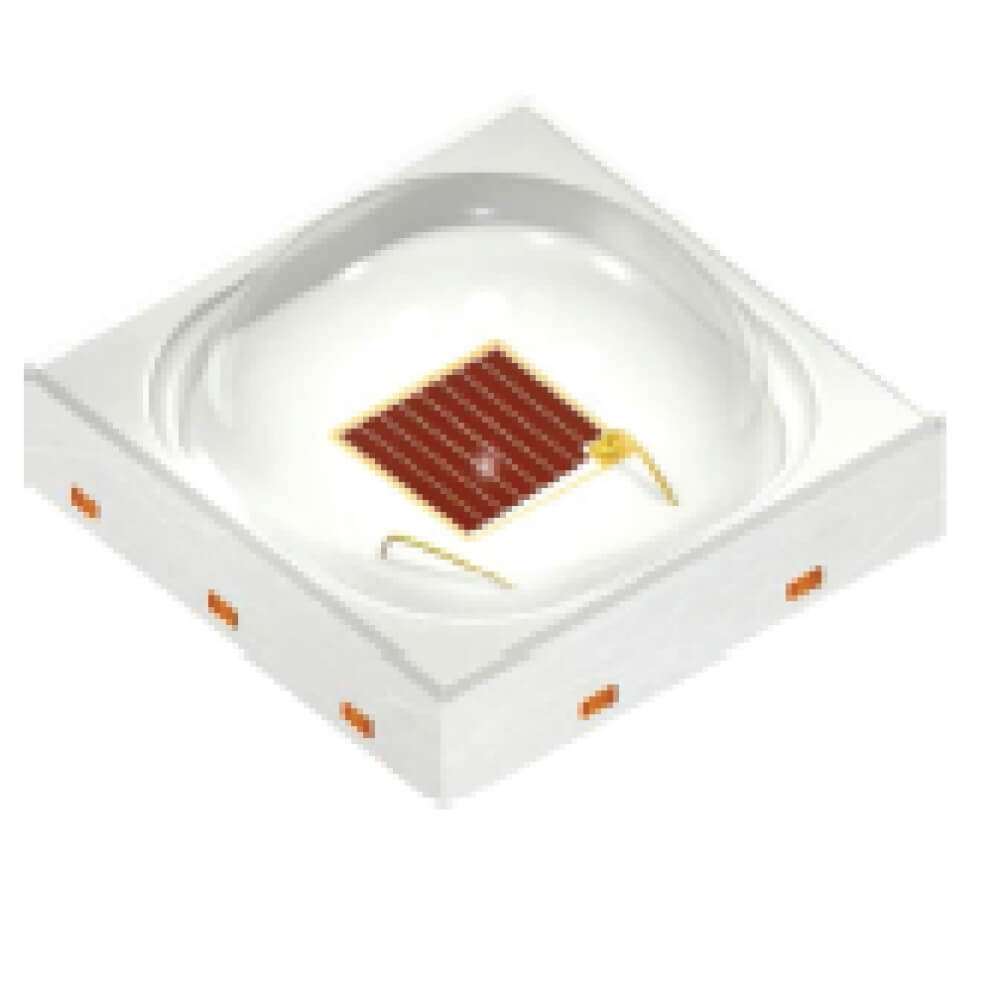

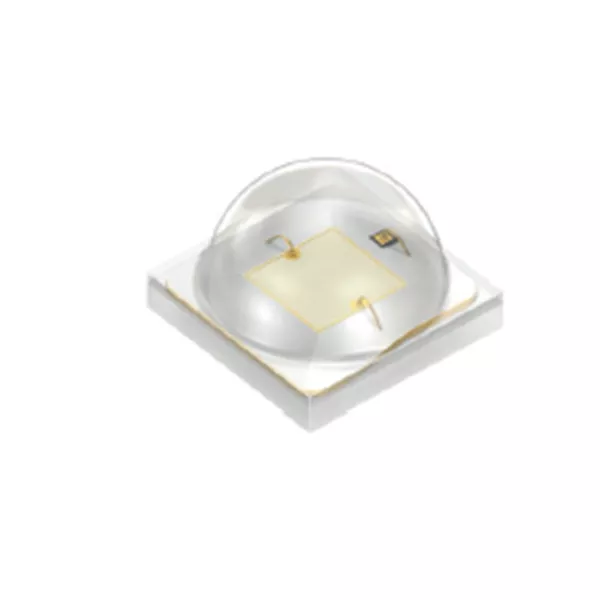

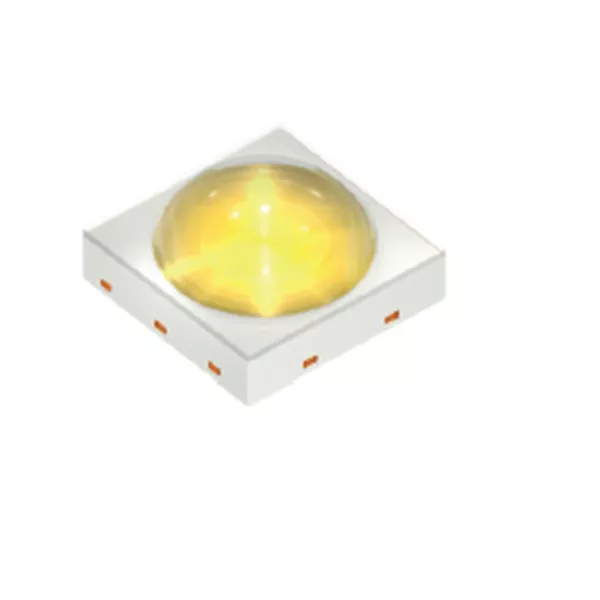

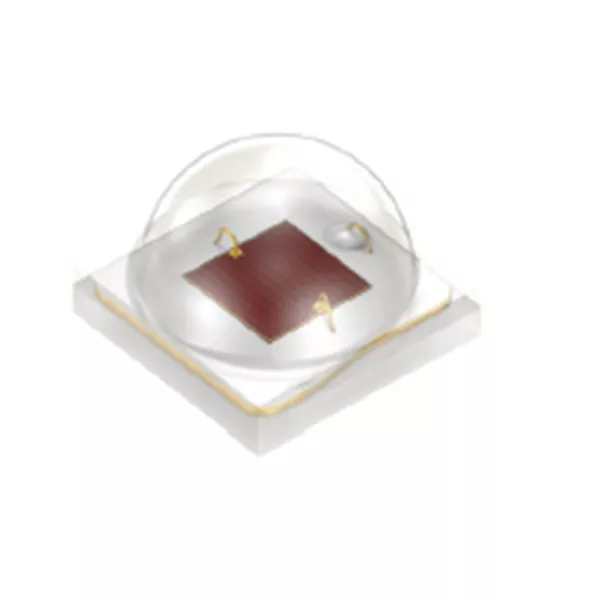

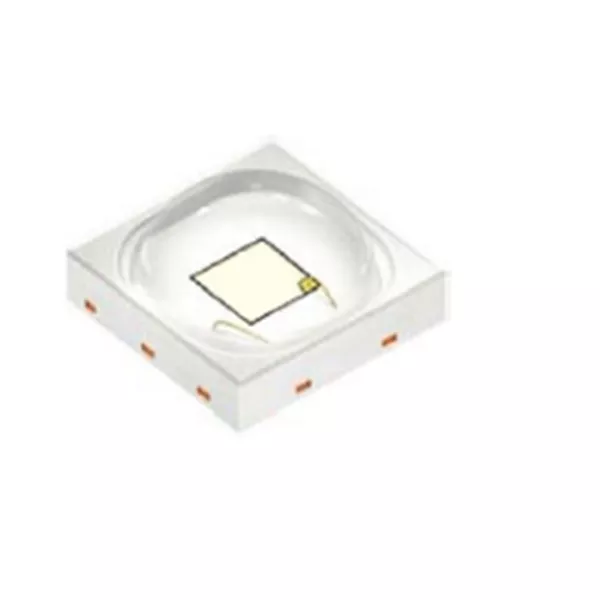

OSCONIQ P 3030 COLOR

Üretici : OSRAM Opto Semiconductors
Kategori : High Power LED

Application :Stage Lighting (LED & Laser)-Accent (BAR)-Architecture
Package : SMD epoxy package
Viewing angle at 50 % IV: 120°

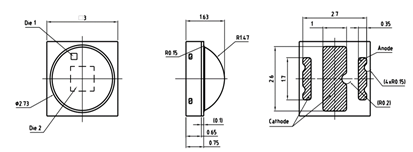

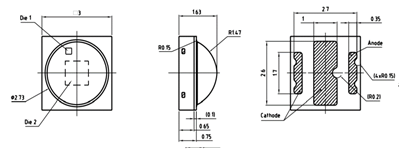

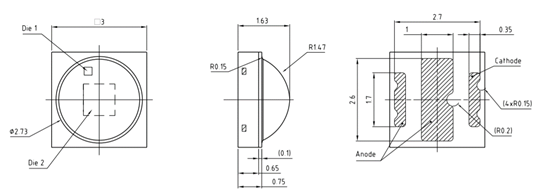

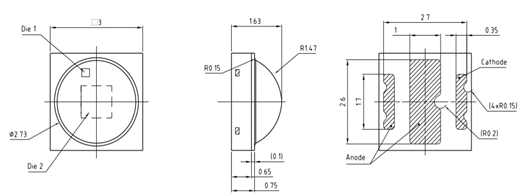

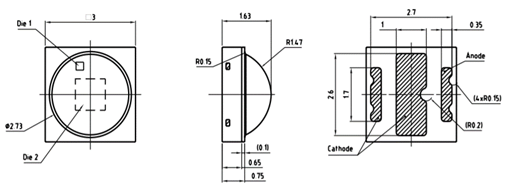

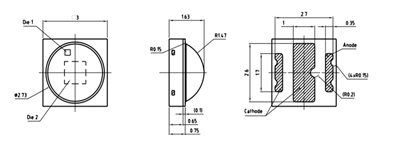

Size: 3.0X3.0mm
Ürün Özellikleri



Color : White

Product Code

Binning current

Max Driving Current

Typ. Flux @ 85°C

Typ. Forward

 voltage

Typ. Efficacy @binning current

CCT Range

GW QSSPA1.WB

350mA

1300mA

180lm

2,95V

180lm/W

White



Color : Verde

Product Code

Binning current

Max Driving Current

Wavelength

Typ. Flux @ 85°C

Typ. Forward

 voltage

Typ. Efficacy @binning current

GV QSSPA1.13

350mA

1300mA

494nm

77lm

2,93V

75lm/W



Color : True Green

Product Code

Binning current

Max Driving Current

Wavelength

Typ. Flux @ 85°C

Typ. Forward

 voltage

Typ. Efficacy @binning current

GT QSSPA1.13

350mA

1300mA

528nm

143lm

2,70V

151lm/W



Color : Red

Product Code Binning currentMax Driving CurrentWavelength Typ. Flux @ 85°C Typ. Forward
voltage
Typ. Efficacy @binning current
GR QSSPA1.23350mA1000mA617nm97lm2,18V127lm/W



Color : Hyper Red

Product CodeWavelength Binning currentMax Driving Current Typ. Forward voltage Typ. Flux [mW]Typ. Efficacy[rad. Eff]
GH QSSPA1.24657nm350mA1000mA2.10V440mW59%





Color : Deep Blue

Product Code

Wavelength

Binning current

Max Driving Current

Typ. Forward voltage

Typ. Flux [mW]

Typ. Efficacy[rad. Eff]

GD QSSPA1.14

449nm

350mA

1300mA

2,85V

700mW

70%
