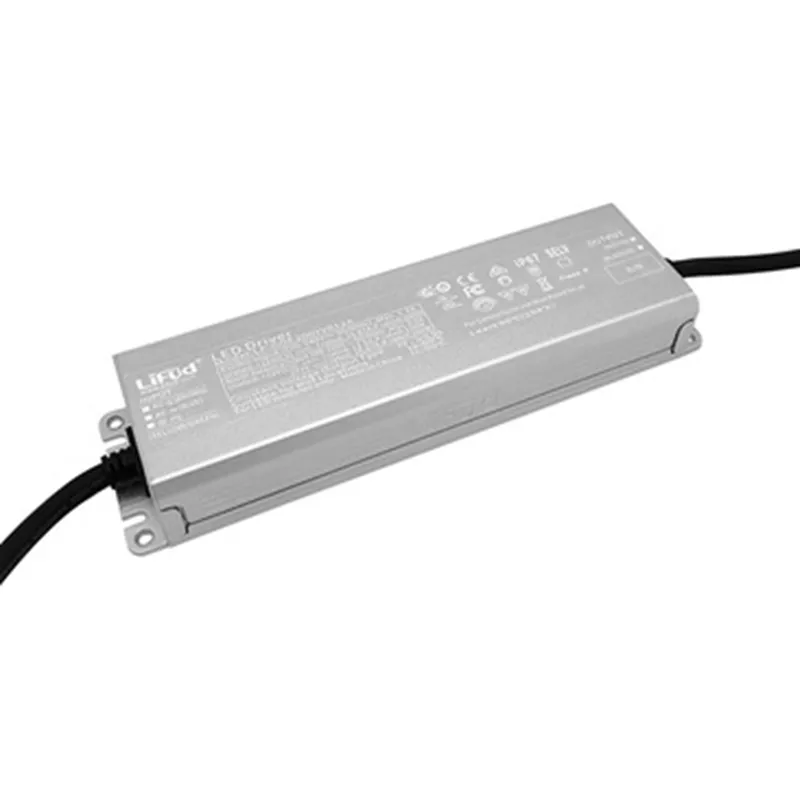

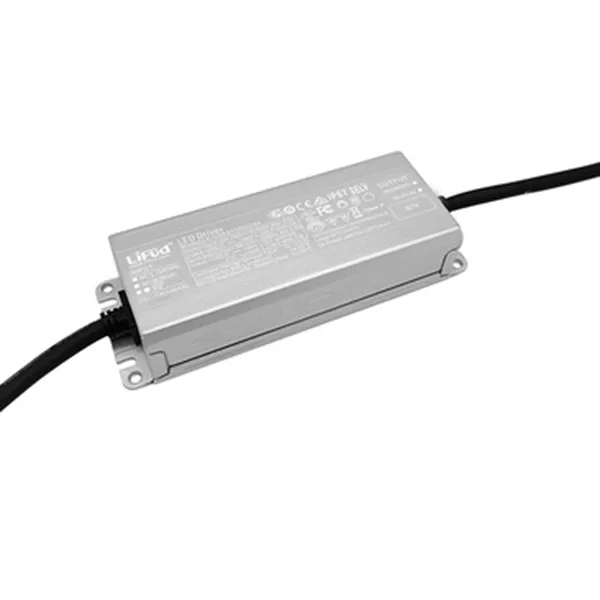

LF-GOExxxYV Series | Sarnikon
2. Yüksek verimlilik (<93%)
3. Potansiyometre ile kolay gerilim ayarı
4. Yıldırım Koruması: L-N: 6KV, L/N-PG: 8KV
5. IP67
Uygulama Alanı: Dış Aydınlatma, Konut Aydınlatması, LED lightbox,.. vb.
Sertifikalar: ENEC, CE, CB, UL, FCC, RCM
5 Yıl Garanti
Model+A3:H11A3:H20A3A3:H16 | Çıkış Gücü (Output Power)(W) | Giriş Gerilim Aralığı (Input Voltage Range)(Vac) | Çıkış Gerilim Aralığı (Output Voltage Range)(Vdc) | Çıkış Akım Aralığı (Output Current Range)(mA) | Verimlilik(Efficiency) | Çıkış Gerilim Toleransı(Output Voltage Tolerance) | Ölçüler(Dimension)(L*W*H)(mm) |
LF-GOE075YV012A | 60 | 100-180 | 12 | 0.24 – 5.0 | 86%(180Vac) | 92%-108% | 170*61*34 |
LF-GOE075YV012A | 75 | 220-277 | 12 | 0.24 – 6.25 | 87%(230Vac) | 92%-108% | 170*61*34 |
LF-GOE075YV024A | 60 | 100-180 | 24 | 0.24 – 2.5 | 87%(180Vac) | 92%-108% | 170*61*34 |
LF-GOE075YV024A | 75 | 220-277 | 24 | 0.24 – 3.125 | 88%(230Vac) | 92%-108% | 170*61*34 |
LF-GOE100YV012A | 75 | 100-180 | 12 | 0.24 – 6.25 | 87%(180Vac) | 92%-108% | 170*61*34 |
LF-GOE100YV012A | 100 | 220-277 | 12 | 0.4 – 8.34 | 89%(230Vac) | 92%-108% | 170*61*34 |
LF-GOE100YV024A | 75 | 100-180 | 24 | 0.24 – 3.125 | 87%(180Vac) | 92%-108% | 170*61*34 |
LF-GOE100YV024A | 100 | 220-277 | 24 | 0.24 – 4.17 | 89%(230Vac) | 92%-108% | 170*61*34 |
LF-GOE150YV012A | 100 | 100-180 | 12 | 0.4 – 8.34 | 88%(180Vac) | 92%-108% | 170*61*34 |
LF-GOE150YV012A | 150 | 220-277 | 12 | 0.4 – 11.5 | 93%(230Vac) | 92%-108% | 170*61*34 |
LF-GOE150YV024A | 100 | 100-180 | 24 | 0.24 – 4.17 | 88%(180Vac) | 92%-108% | 170*61*34 |
LF-GOE150YV024A | 150 | 220-277 | 24 | 0.4 – 6.25 | 93%(230Vac) | 92%-108% | 170*61*34 |
LF-GOE200YV012A | 150 | 100-180 | 12 | 0.4 – 12.5 | 88%(180Vac) | 92%-108% | 228*63*34 |
LF-GOE200YV012A | 200 | 220-277 | 12 | 0.4 – 16.67 | 93%(230Vac) | 92%-108% | 228*63*34 |
LF-GOE200YV024A | 150 | 100-180 | 24 | 0.4 – 6.25 | 88%(180Vac) | 92%-108% | 228*63*34 |
LF-GOE200YV024A | 200 | 220-277 | 24 | 0.4 – 8.34 | 93%(230Vac) | 92%-108% | 228*63*34 |
LF-GOE250YV024A | 200 | 100-180 | 24 | 0.4 – 8.34 | 88%(180Vac) | 92%-108% | 228*63*34 |
LF-GOE250YV024A | 250 | 220-277 | 24 | 0.4 – 10.42 | 93%(230Vac) | 92%-108% | 228*63*34 |
