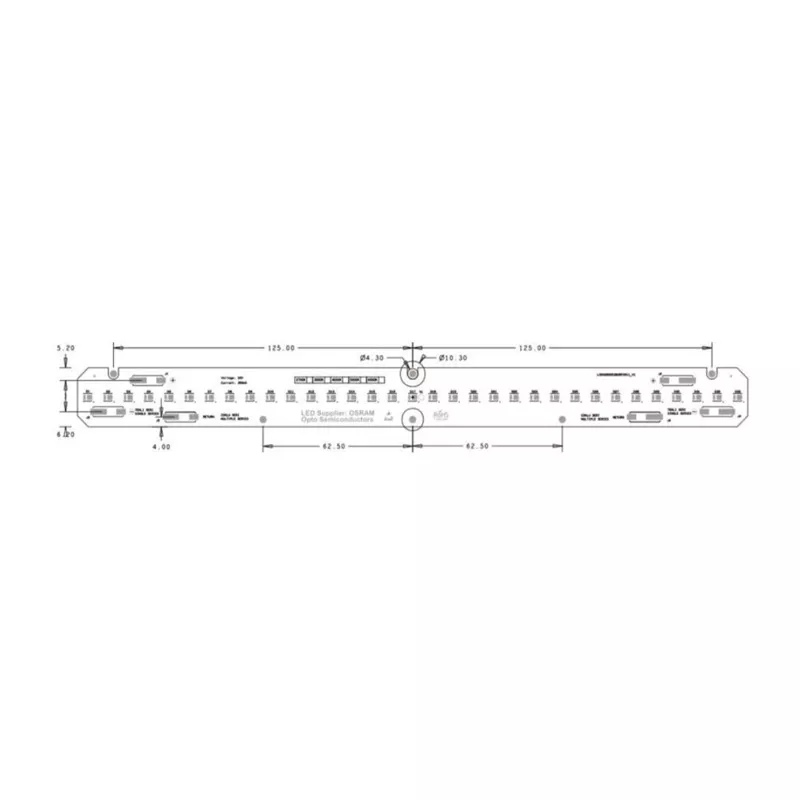

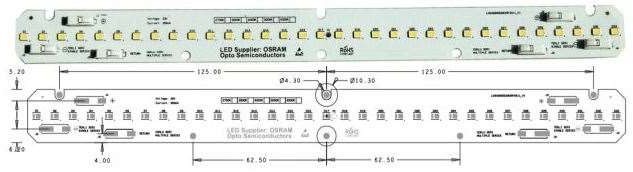

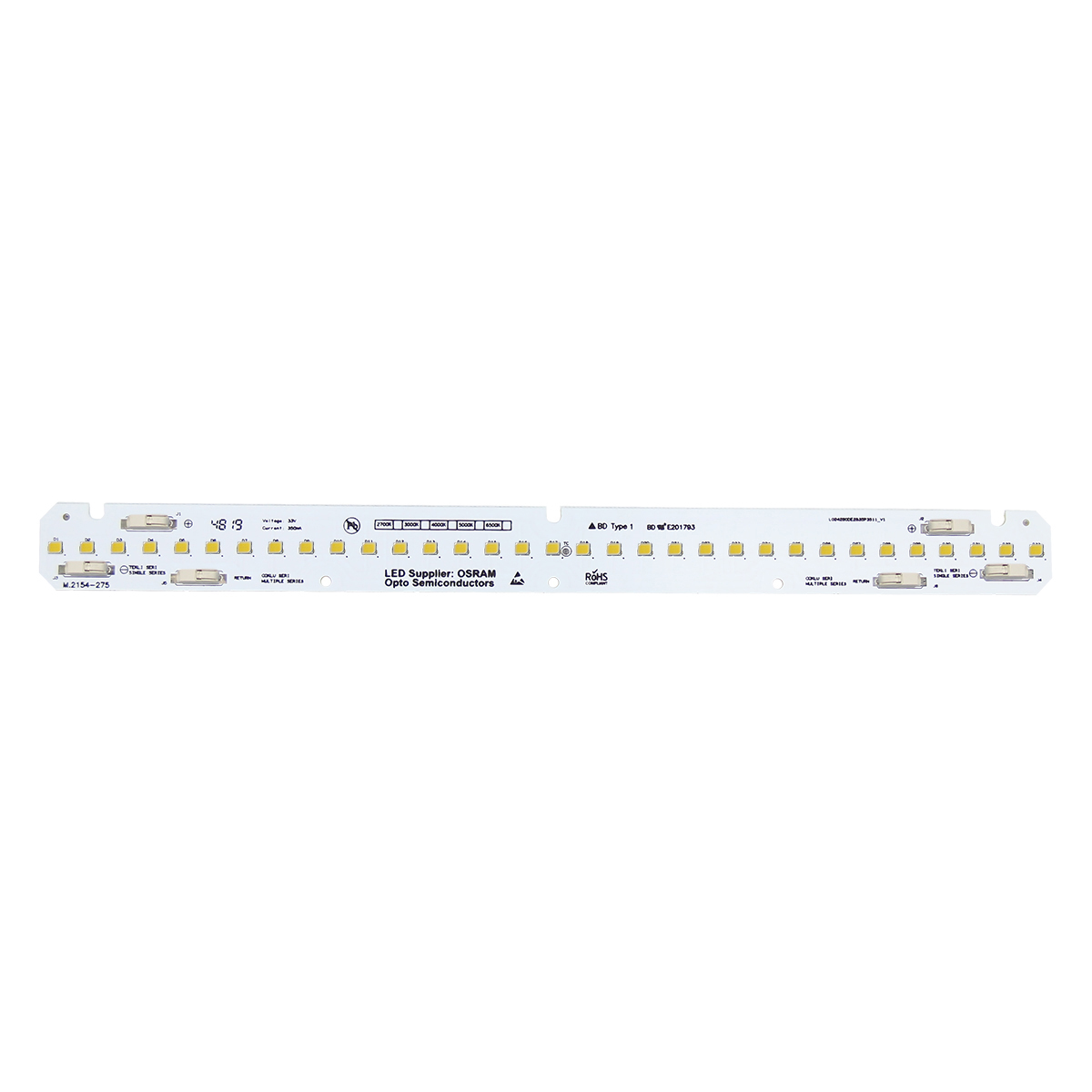

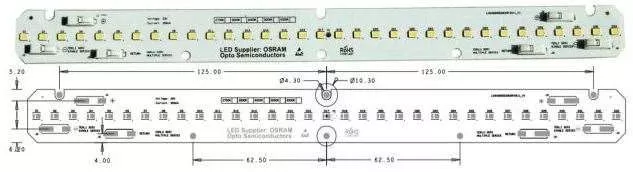

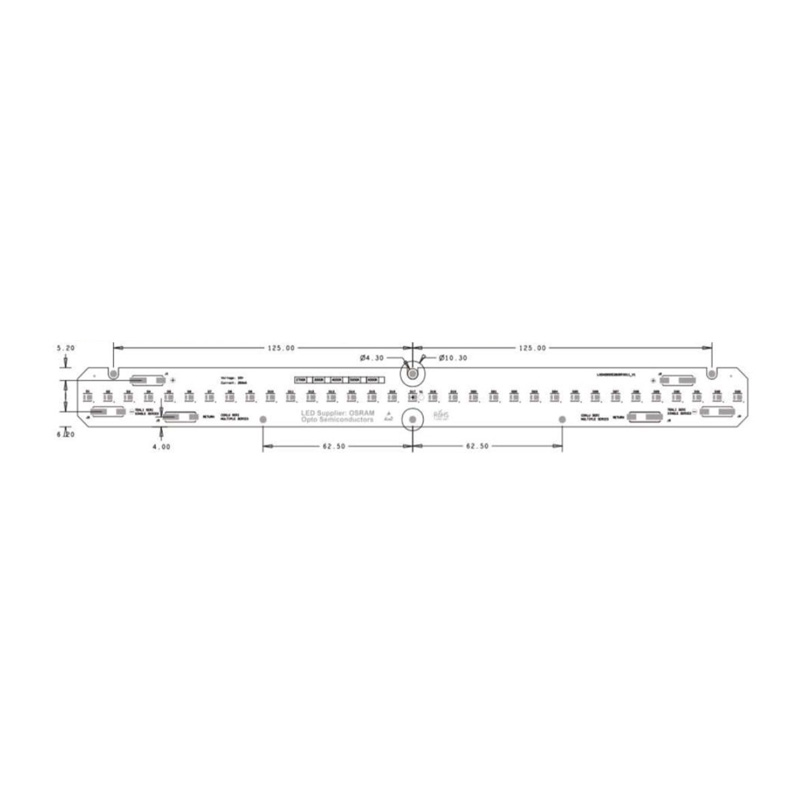

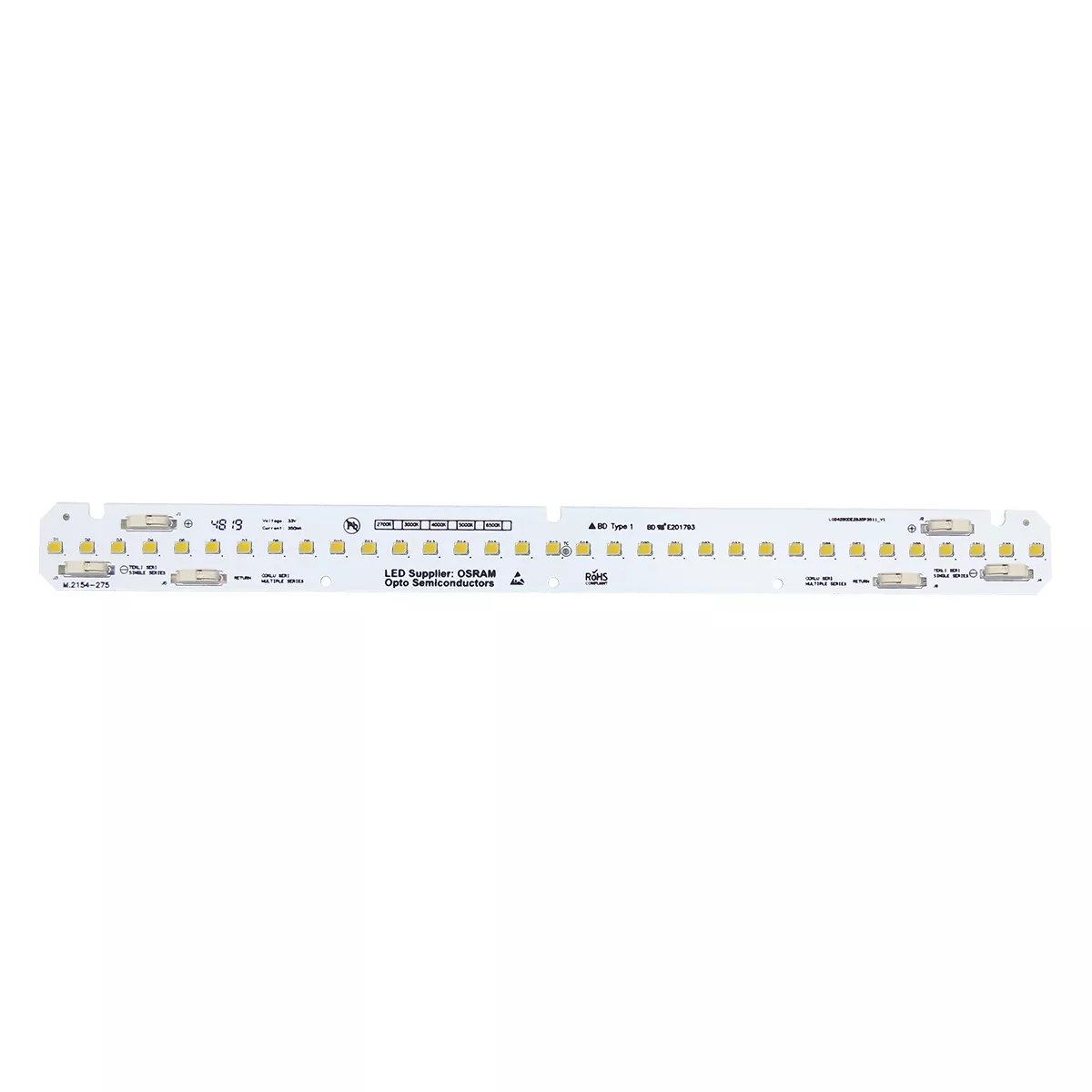

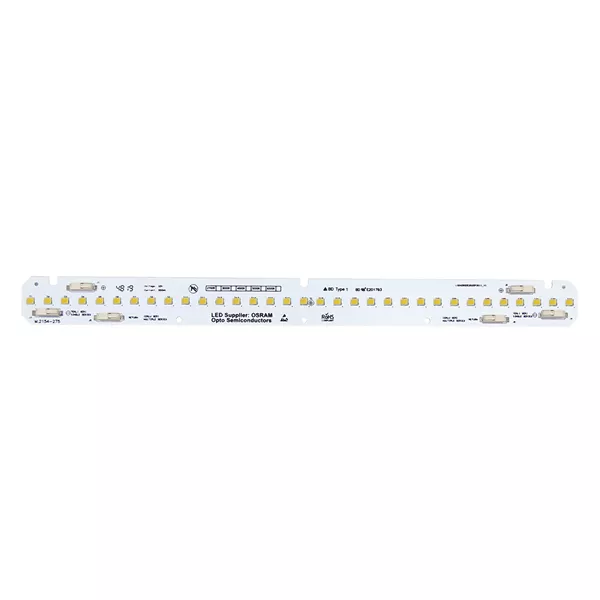

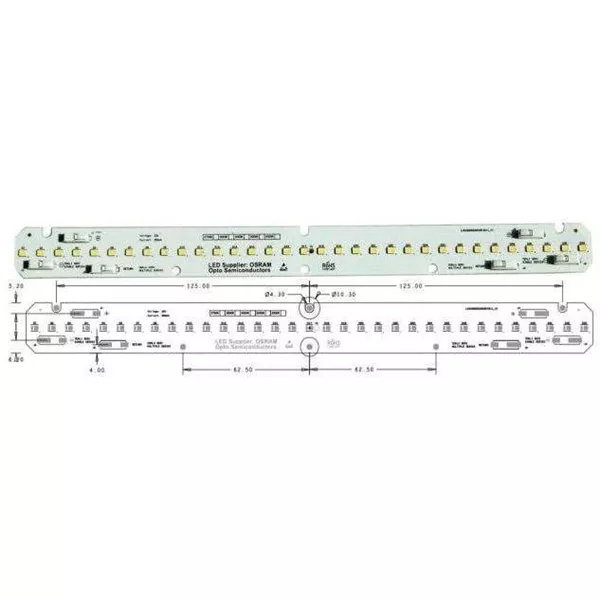

LN-F4-24X280- D28X33 Led Modül

Üretici : Sarnikon

Kategori : İç Aydınlatma LED Modülleri

•   LED type : OSRAM Duris E 28*35
•   LED case: 2.8 mm x 3.5mm
•   Viewing angle: 1200
•   IEC62471 Biological Eye Safety Test Report
•   Up to 150 mA
•   Thermal resistance (typ.) : 57.3 K/W
•   Constant colour binnig
•   Constant voltage binning
•   LM80 test report
•   Suitable for linear illumination
•   Low energy consumption, high efficacy and long life
•   Integrated current source to stabilize
•   Homogeneous illumination
•   3 years warranty

Ürün Özellikleri

Product Code	Color Temperature[1]	Total number of LEDs	Number of parallel strings	Number of LEDs per string	Luminous Flux @ ts = 25 °C (lm)[2]		Luminous Flux @ ts = 45 °C (lm)2		Min.Forward Voltage@ ts = 65 °C (V)[3]	Max. forward Voltage@ ts = 25 °C (V)3	Max.Power consumption (W)3	Colour rendering index (CRI)
Product Code	Color Temperature[1]	Total number of LEDs	Number of parallel strings	Number of LEDs per string	Luminous Flux @ ts = 25 °C (lm)[2]		Luminous Flux @ ts = 45 °C (lm)2		Min.Forward Voltage@ ts = 65 °C (V)[3]	Max. forward Voltage@ ts = 25 °C (V)3	Max.Power consumption (W)3	Colour rendering index (CRI)	Operating mode at 350mA constant current
LN-F4-24X280-D28X33-30	3000K	33	3	11	1515	1683	1409	1565	30,8	35,2	12,32	≥80
LN-F4-24X280-D28X33-40	4000K	33	3	11	1515	1683	1409	1565	30,8	35,2	12,32	≥80
LN-F4-24X280-D28X33-65	6500K	33	3	11	1515	1683	1409	1565	30,8	35,2	12,32	≥80

3000K : GW JTLMS1.EM-G9H1-A737

4000K : GW JTLMS1.EM-GVH2-A535

6500K : GW JTLMS1.EM-GVH2-A131

Tolerace range for optical data ±10%

Tolerance range for electrical data ±4%
