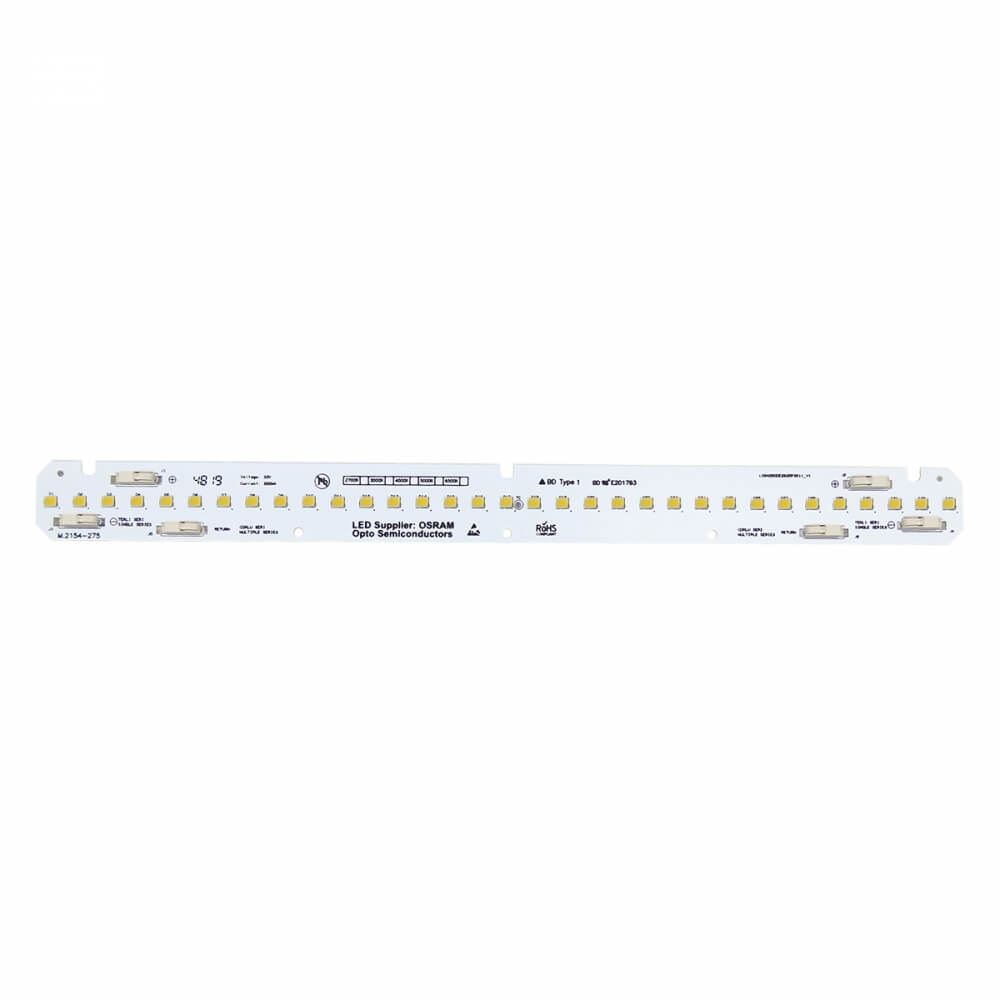

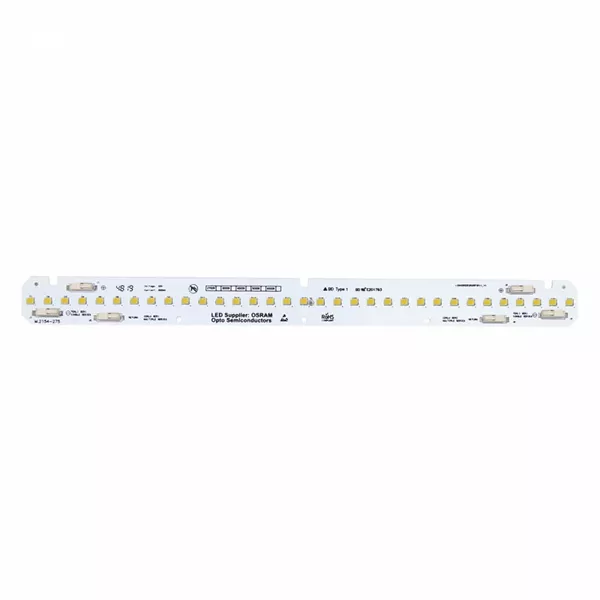

LN F4 24X280 D28X33 LED MODUL | Sarnikon
LN-F4-24X280- D28X33 Led Modül
Üretici : Sarnikon
Kategori : İç Aydınlatma LED Modülleri
• LED type : OSRAM Duris E 28*35
• LED case: 2.8 mm x 3.5mm
• Viewing angle: 1200
• IEC62471 Biological Eye Safety Test Report
• Up to 150 mA
• Thermal resistance (typ.) : 57.3 K/W
• Constant colour binnig
• Constant voltage binning
• LM80 test report
• Suitable for linear illumination
• Low energy consumption, high efficacy and long life
• Integrated current source to stabilize
• Homogeneous illumination
• 3 years warranty
• LED case: 2.8 mm x 3.5mm
• Viewing angle: 1200
• IEC62471 Biological Eye Safety Test Report
• Up to 150 mA
• Thermal resistance (typ.) : 57.3 K/W
• Constant colour binnig
• Constant voltage binning
• LM80 test report
• Suitable for linear illumination
• Low energy consumption, high efficacy and long life
• Integrated current source to stabilize
• Homogeneous illumination
• 3 years warranty
Ürün Özellikleri
| Product Code | Color Temperature[1] | Total number of LEDs | Number of parallel strings | Number of LEDs per string | Luminous Flux @ ts = 25 °C (lm)[2] | Luminous Flux @ ts = 45 °C (lm)2 | Min.Forward Voltage@ ts = 65 °C (V)[3] | Max. forward Voltage@ ts = 25 °C (V)3 | Max.Power consumption (W)3 | Colour rendering index (CRI) | ||
Operating mode at 350mA constant current
LN-F4-24X280-D28X33-30 | 3000K | 33 | 3 | 11 | 1515 | 1683 | 1409 | 1565 | 30,8 | 35,2 | 12,32 | ≥80 |
LN-F4-24X280-D28X33-40 | 4000K | 33 | 3 | 11 | 1515 | 1683 | 1409 | 1565 | 30,8 | 35,2 | 12,32 | ≥80 |
LN-F4-24X280-D28X33-65 | 6500K | 33 | 3 | 11 | 1515 | 1683 | 1409 | 1565 | 30,8 | 35,2 | 12,32 | ≥80 |
4000K : GW JTLMS1.EM-GVH2-A535
6500K : GW JTLMS1.EM-GVH2-A131
Tolerace range for optical data ±10%
Tolerance range for electrical data ±4%
