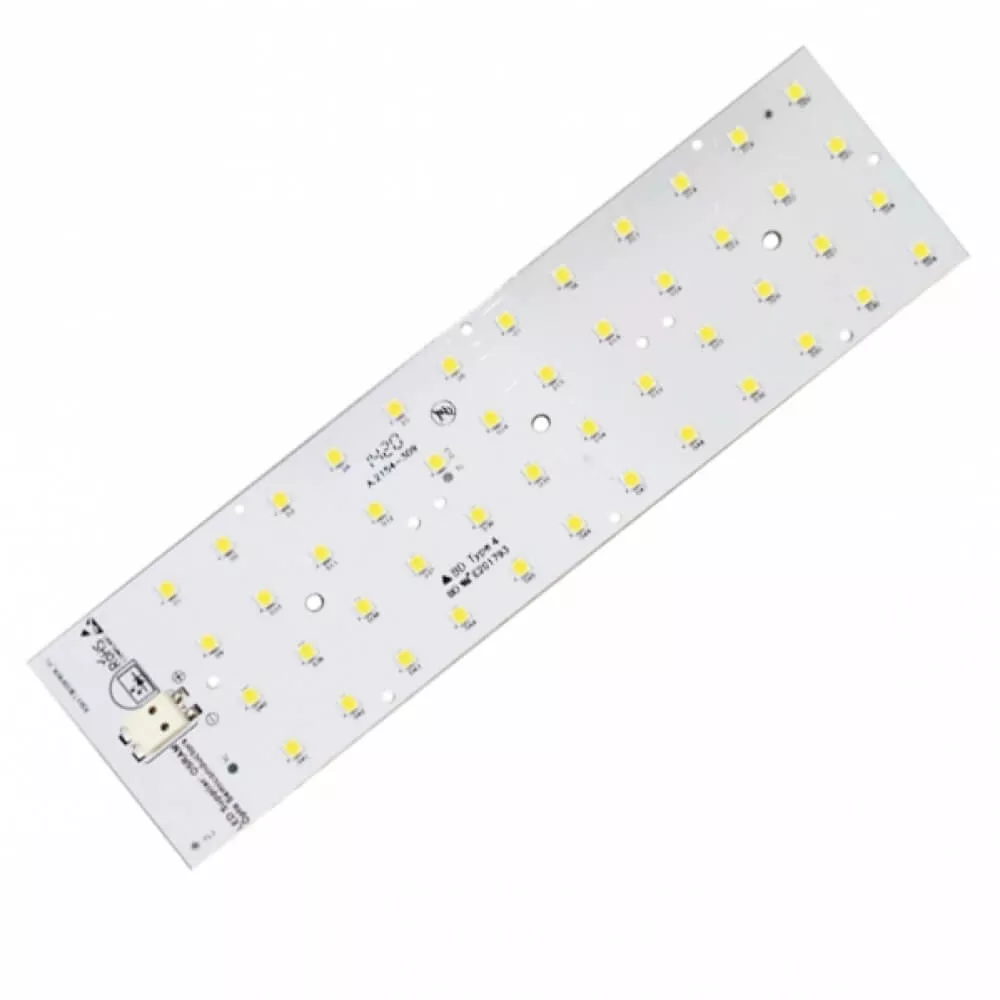

REC-AL1-173X50-DS5X48

Üretici : Sarnikon

Kategori : İç Aydınlatma LED Modülleri

•   Ideal for park,garden,gas station,street and tunel lighting
•   Low energy consumption, high efficiency and long life
•   Homogeneous illumination
•   3 years warranty

Ürün Özellikleri

Product Code	Color Temperature[1]	Total number of LEDs	Number of parallel strings	Number of LEDs per string	Luminous Flux		Luminous Flux		Min.Forward Voltage	Max. forward Voltage	max.Power consumption(W)	Colour rendering index (CRI)
Product Code	Color Temperature[1]	Total number of LEDs	Number of parallel strings	Number of LEDs per string	@ ts = 25 °C (lm)		@ ts = 65 °C (lm)		@ ts = 65 °C (V)	@ ts = 25 °C (V)	max.Power consumption(W)	Colour rendering index (CRI)
Operating mode at 700 mA constant current
REC-AL1-173X50-DS5X48-30	3000K	48	8	6	4375	4672	4068	4345	33,6	39,6	27,7	≥80
REC-AL1-173X50-DS5X48-40	4000K	48	8	6	4524	4821	4207	4484	33,6	39,6	27,7	≥70
REC-AL1-173X50-DS5X48-65	6500K	48	8	6	4375	4672	4068	4345	33,6	39,6	27,7	≥70
Operating mode at 1000 mA constant current
REC-AL1-173X50-DS5X48-30	3000K	48	8	6	5998	6406	5578	5957	33,6	39,6	39,6	≥80
REC-AL1-173X50-DS5X48-40	4000K	48	8	6	6202	6610	5767	6147	33,6	39,6	39,6	≥70
REC-AL1-173X50-DS5X48-65	6500K	48	8	6	5998	6406	5578	5957	33,6	39,6	39,6	≥70
Operating mode at 1400mA constant current
REC-AL1-173X50-DS5X48-30	3000K	48	8	6	8114	8666	7546	8060	33,6	39,6	55,44	≥80
REC-AL1-173X50-DS5X48-40	4000K	48	8	6	8390	8942	7803	8316	33,6	39,6	55,44	≥70
REC-AL1-173X50-DS5X48-65	6500K	48	8	6	8114	8666	7546	8060	33,6	39,6	55,44	≥70

[1] 3000K :GW PSLR31.EM-LQ-A737

4000K : GW PSLT33.PM-LYL1-XX55

6500K : GW PSLT33.PM-LYL1-XX51

Tolerace range for optical data ±10%

[1]Tolerance range for electrical data ±4%
