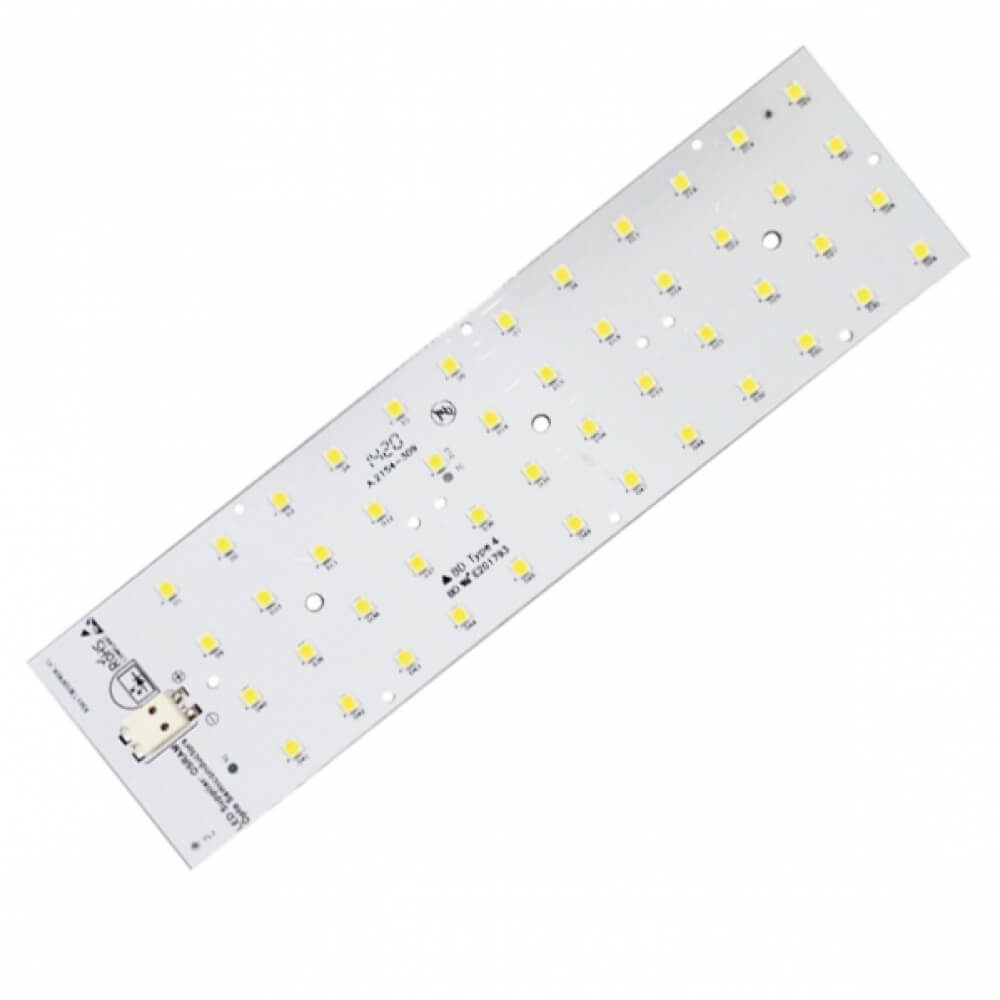

REC-AL1-173X50-DS5X48 | Sarnikon
• Low energy consumption, high efficiency and long life
• Homogeneous illumination
• 3 years warranty
Product Code | Total number of LEDs | Number of parallel strings | Number of LEDs per string | Luminous Flux | Luminous Flux | Min.Forward Voltage | Max. forward Voltage | max.Power consumption(W) | Colour rendering index (CRI) | |||
@ ts = 25 °C (lm) | @ ts = 65 °C (lm) | @ ts = 65 °C (V) | @ ts = 25 °C (V) |
| ||||||||
Operating mode at 700 mA constant current | ||||||||||||
REC-AL1-173X50-DS5X48-30 | 3000K | 48 | 8 | 6 | 4375 | 4672 | 4068 | 4345 | 33,6 | 39,6 | 27,7 | ≥80 |
REC-AL1-173X50-DS5X48-40 | 4000K | 48 | 8 | 6 | 4524 | 4821 | 4207 | 4484 | 33,6 | 39,6 | 27,7 | ≥70 |
REC-AL1-173X50-DS5X48-65 | 6500K | 48 | 8 | 6 | 4375 | 4672 | 4068 | 4345 | 33,6 | 39,6 | 27,7 | ≥70 |
Operating mode at 1000 mA constant current | ||||||||||||
REC-AL1-173X50-DS5X48-30 | 3000K | 48 | 8 | 6 | 5998 | 6406 | 5578 | 5957 | 33,6 | 39,6 | 39,6 | ≥80 |
REC-AL1-173X50-DS5X48-40 | 4000K | 48 | 8 | 6 | 6202 | 6610 | 5767 | 6147 | 33,6 | 39,6 | 39,6 | ≥70 |
REC-AL1-173X50-DS5X48-65 | 6500K | 48 | 8 | 6 | 5998 | 6406 | 5578 | 5957 | 33,6 | 39,6 | 39,6 | ≥70 |
Operating mode at 1400mA constant current | ||||||||||||
REC-AL1-173X50-DS5X48-30 | 3000K | 48 | 8 | 6 | 8114 | 8666 | 7546 | 8060 | 33,6 | 39,6 | 55,44 | ≥80 |
REC-AL1-173X50-DS5X48-40 | 4000K | 48 | 8 | 6 | 8390 | 8942 | 7803 | 8316 | 33,6 | 39,6 | 55,44 | ≥70 |
REC-AL1-173X50-DS5X48-65 | 6500K | 48 | 8 | 6 | 8114 | 8666 | 7546 | 8060 | 33,6 | 39,6 | 55,44 | ≥70 |
[1] 3000K :GW PSLR31.EM-LQ-A737
4000K : GW PSLT33.PM-LYL1-XX55
6500K : GW PSLT33.PM-LYL1-XX51
Tolerace range for optical data ±10%
[1]Tolerance range for electrical data ±4%
