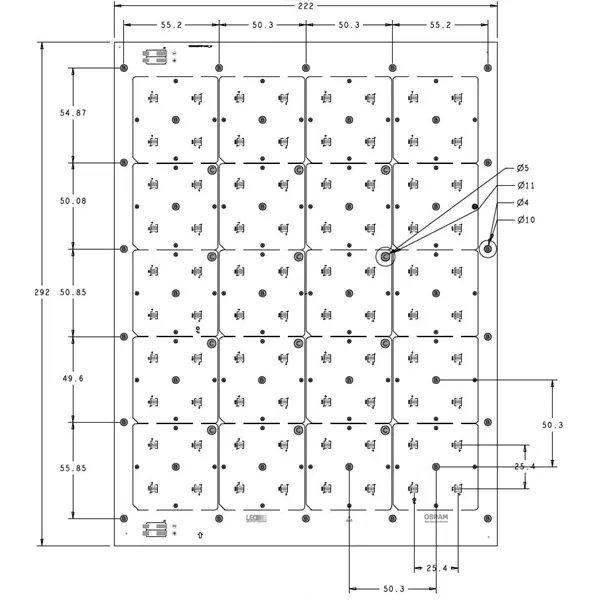

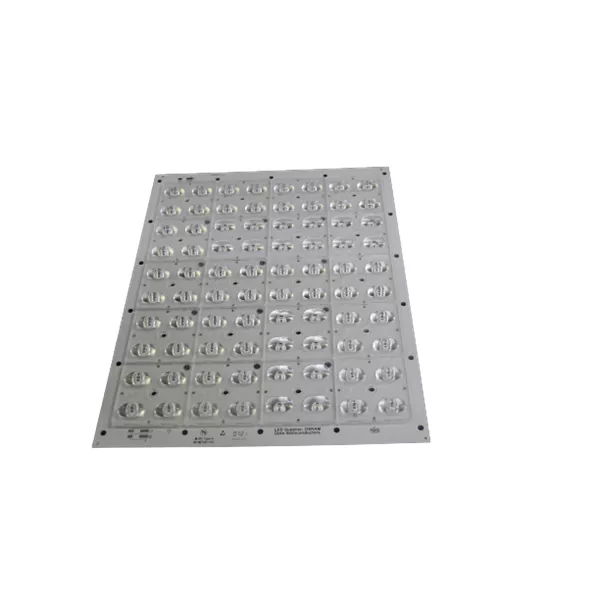

REC AL1 292X222 SQRX80 | Sarnikon
Product Code | Color Temperature1 | Total number of LEDs | Number of parallel strings | Number of LEDs per string | Luminous Flux @ ts = 85 °C (lm)2 | Min.Forward Voltage @ ts = 85 °C (V)3 | Max. forward Voltage @ ts = 85 °C (V)3 | max.Power consumption (W)3 | Colour rendering index (CRI) |
Operating mode at 350 mA
REC-222X292-SQRX80-30 | 3000K | 80 | 1 | 80 | 12952 | 13802 | 212 | 256 | 89,6 | ≥70 |
REC-222X292-SQRX80-40 | 4000K | 80 | 1 | 80 | 14226 | 15076 | 212 | 256 | 89,6 | ≥70 |
REC-222X292-SQRX80-65 | 6500K | 80 | 1 | 80 | 13802 | 14651 | 212 | 256 | 89,6 | ≥70 |
Operating mode at 500 mA
REC-222X292-SQRX80-30 | 3000K | 80 | 1 | 80 | 18014 | 19196 | 212 | 256 | 128 | ≥70 |
REC-222X292-SQRX80-40 | 4000K | 80 | 1 | 80 | 19786 | 60967 | 212 | 256 | 128 | ≥70 |
REC-222X292-SQRX80-65 | 6500K | 80 | 1 | 80 | 19196 | 20377 | 212 | 256 | 128 | ≥70 |
Operating mode at 700 mA
REC-222X292-SQRX80-30 | 3000K | 80 | 1 | 80 | 24427 | 26029 | 212 | 256 | 179,2 | ≥70 |
REC-222X292-SQRX80-40 | 4000K | 80 | 1 | 80 | 26830 | 28432 | 212 | 256 | 179,2 | ≥70 |
REC-222X292-SQRX80-65 | 6500K | 80 | 1 | 80 | 26029 | 27631 | 212 | 256 | 179,2 | ≥70 |
Operating mode at 1050 mA
REC-222X292-SQRX80-30 | 3000K | 80 | 1 | 80 | 34727 | 37005 | 212 | 256 | 268,8 | ≥70 |
REC-222X292-SQRX80-40 | 4000K | 80 | 1 | 80 | 38143 | 40420 | 212 | 256 | 268,8 | ≥70 |
REC-222X292-SQRX80-65 | 6500K | 80 | 1 | 80 | 37005 | 39202 | 212 | 256 | 268,8 | ≥70 |
